Table 1 summarizes the pros and cons of using native
product-based monitoring tools.
|
Pros |
Cons |
|
Monitoring tools are tightly integrated with the kernel which
minimizes the impact of monitoring on the main process itself or any other
side effects. |
Nobody can guarantee that in the next version the tool will still
be available or have the same features. This may lead to migration issues. |
|
Many tools are used by the manufacturers themselves (such as
TKPROF) which makes them highly effective and bug-free. |
We have to trust the manufacturer, so a third opinion is
missing. |
|
If a manufacturer has a number of products, it is easier to
have integrated information. |
It is problematic to integrate information from different
levels and manufacturers. |
|
These tools usually provide a lot of information and focus on
low-end data. |
Huge data volumes make identifying needed information
problematic. |
Table 1: Pros and Cons of Product-Based Monitoring Tools
Third-Party Product-Based Monitoring Tools
Third-party tools try to resolve some issues that cannot be
resolved using native tools. Any significant player on the market has (or
thinks they have) a product to make developers’ lives better. Confio Ignite for
Java/Oracle, Quest SQL Tuning, and the
·
Versioning of solutions
·
Possibility of comparing multiple solutions by a
user-defined set of parameters
·
Libraries of possible solutions for each class
of problem
·
Advanced reporting capabilities
Oracle version 10g
aggressively enters this arena by providing a large number of performance
advisors; but we have to be thankful to other software manufacturers for these
changes. Now everybody can recognize that just having a hundreds of
init.ora-parameters is not enough to tune the system. You need both a
·
Input
matrix (Methods/Parameters/Results) – specifies the decisions that could be
made to resolve a specified problem. There are different ways of describing the
set of possible solutions, but the idea still is the same. You detect all valid
algorithms and, for each algorithm, describe all input data (variables/conventions/definitions).
For each combination of input parameters, you provide either the expected or
testing result (whenever possible).
·
Analytical
matrix (Precision/Effectiveness/Cost) – resolves each valid option to a level
where more quantitative priorities could be set. First, you need to define the
solution boundaries (for example, some memory tuning techniques are applicable
in one operating system and not in another). Next, you need to make an expert
judgment about how good the solution is based purely on its effectiveness
(complete/mostly complete/partial, etc.). The last task is to estimate all
costs associated with both the development and implementation of the solution.
With the current level of complexity of database-related projects,
there are very few problems that have one and only one correct solution. Even
if that solution exists, the time allocated to spend on the problem is usually
less than the time required to find the optimal solution. As a result, in the
near future, integration of
|
Pros |
Cons |
|
Pre-processing of raw data makes the process of performance
analysis simpler. |
We have to trust the software manufacturer, because the
technique of pre-processing is hidden. |
|
|
Nobody yet knows where to draw the line between automatic and
manual processes. |
|
These tools provide better integration with non-Oracle software |
The additional cost of third-party tools must be added to the
cost of Oracle licenses. |
Table 2: Pros and Cons of Third Party Monitoring Tools
There is one major problem with any product-based performance
tuning concept. It is barely a “methodology” because it is usually nothing more than a set of tools
and best practices about how to use these tools. There could be a number of
reasons but the major one is very simple: there is no single product which can
be used to build the whole system. Each tool may be perfect for its intended
purpose, but there are currently no third-party tools that provide true
end-to-end solutions.
Function-Based Tuning
Function-based tuning concepts have naturally evolved from the
problems that developers encountered with product-based solutions. It has been
the author’s experience that, sooner or later, most developers decide to build
some kind of a structure to capture performance information only about the
module that they are working on. When writing a module, you always know its major
functional parameters. As a result, you have a significantly better chance of
setting the correct tuning priorities (for example, who cares if an overnight
batch process takes 80% of the CPU as long as it can load all of the data
before people come to the office). You also know what additional information
could be crucial for tuning and debugging. Therefore you can create your own tuning methodology by
defining:
·
A set of “things” to be monitored – explicitly
in the code
·
A set of additional data to be logged –
explicitly in the code
·
A set of measured quantities that define the
appropriate and inappropriate behavior of the module – in specifications
·
Best practices of interpreting the collected
data – usually in your head
Some development teams are starting to standardize these
“home-grown” monitoring tools and reuse them across projects. But since these
tools were built to answer very precise questions, they include the original
concepts of the first module for which they were designed. Thus the “global”
tuning methodology of the project is nothing more than an extension and summary
of the methods of each functional module. Table 3 summarizes the pros and cons
of function-based tuning.
|
Pros |
Cons |
|
A function-based approach is usually implemented in the most
critical system areas. By looking at what areas have been monitored more
actively than others, the tuning efforts can be better focused throughout the
development and implementation processes. |
This type of tuning is very limited by design and often
difficult to extend or alter. |
|
Function-based technologies are built by developers for
developers so there is no need for extra “translation.” |
When modifications are needed, the tuning concepts are not
always used in the way in which they were originally intended. It can lead to
unexpected results and unwanted side effects. |
|
Since the team who built the monitoring tool is usually the
same one using the information it provides, this information is clearly
communicated and properly used. |
“Bottom-up” development often misses system-wide effects
(integration of functions is the most complicated part ). |
|
|
Tuning aspects of different modules may not be compatible. |
Table 3: Pros and Cons of Function-Based Tuning
In general, the function-based approach works best as long as the
project is not very large or the number of developers is limited. There may be
too many ideas hidden inside of the code where you may be blinded by nice data monitoring
and miss the real problem. Alternatively, you can go crazy by looking for a problem
that is really a side effect of incompatible tuning methods. Neither situation
is desirable.
System Tuning Methods
From the point of view of a rank-and-file developer, the current
state of system tuning may be
acceptable. There are new tools with new features, etc. However, from the
broader view of system architect, the situation is far from reasonable. The
number of failed projects due to unacceptable performance discovered in the
later stages of the project is enormous. There are a number of reasons for
these failures:
1.
Communication gap between different teams involved in
the same project
·
Having the option of using so many different tools
and selecting the right one often becomes problematic. Architectural decisions
become more complex because, in some cases, the decision is forced not by the
current information, but by market expectations. This is especially true with
user interfaces (JSP, JSP/Struts, JSF....)
·
There are too many details in each tool. Because
of the increased complexity of the development environment and significantly
narrow specialization of different teams, the whole process of explaining why
one solution is valid for the whole project and one is not can be problematic.
2.
"Wars” between different teams working on large
projects
·
The problem of placing business logic in
different places can become a political rather than a functional decision
Without an influential architect at the top, the whole process can become an issue
of who can first declare ownership of the problem.
3.
“Managerial” decisions instead of architectural ones
·
Because of the high project failure rate, system
architects often have less decision making power in a project than managers.
This may decrease the initial cost of
the system (so everything looks good on paper for top management) , but can cause
major problems down the road during the development and implementation
processes when cut corners produce disastrous results.
4.
Original goals were unreachable from the very beginning
·
There is no trusted way of predicting
performance in the early stages of a project. It is still an architect’s vision
that drives the original specifications. In large projects, it is impossible to
predict how the whole system will “mutate” between the original specifications
and the final implementation.
Many of these reasons for project failures can be avoided by
asking two questions:
1.
How can you get different teams to speak the same
language?
2.
How can you create a generic performance measuring
mechanism?
Having a system tuning methodology is a reasonable way to answer
both of these questions. The proposed tuning language consists of the following
elements:
·
Command
is an atomic part of the process (any command on any tier).
·
Step is
a single logically complete operation, which consists of a number of commands.
·
Request is
an action consisting of a number of steps. A request is passed between
different processing tiers.
·
Arc is
a complete processing cycle in one direction (always one-way) that could be
either a communication step between one tier and another, or a set of steps on
the same tier.
·
Token
transfer is a point of the algorithm where the current activity is
transferred from one level to another.
·
Round-trip
is a complete cycle from the moment the request leaves the tier to the point when
it comes back with some response information.

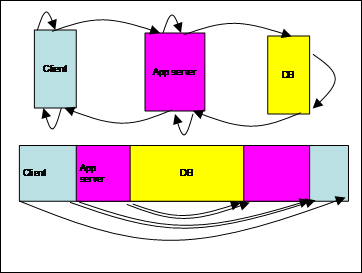

Using this terminology, a generic 3-tier application could always
be described as either a 9-arc or a 5-round-trip structure as shown in Figure
1.
Figure 1: Diagram of Generic 3-Tier Application
Using the example of a 3 tier-system (JClient/Oracle IAS
10g/Oracle DB 10g) where a client application needs to move a customer from
state A (newly received data) to state B (potential interest), the following
steps would apply:
The 9-arc structure represents the whole set of actions in the
following way:
1.
Pre-process the request on the client
·
Collect information about currently connected
users and other global parameters
2.
Send the request to the application server
·
Call a servlet with appropriate parameters
3.
Process the request on the application server
·
Take passed parameters and prepare required
PL/SQL calls (set bind variables)
4.
Send the request to the database
·
Fire a database call via JDBC
5.
Process the request in the database
·
Execute requested procedures and set appropriate
output bind variables
6.
Send the request back to the application server
·
Pass output variables back to the servlet
7.
Interpret the processed request on the application
server
·
Analyze received data and prepare a response
that can be understood by the client application
8.
Send the request back to the client
·
Return a response to the client
9.
Interpret the processed request on the client
·
Interpret the response and execute corresponding
UI-activities
The 5-round-trip structure is significantly simpler and could be
used when detecting a single-directional arc is problematic (usually, it
happens with steps #2,4,6,8 – networking activity is always a bit tricky):
At the client level:
1.
From the moment that a request is initiated to the end
of processing
·
User
clicked the button/response is displayed
2. From the moment that a request is sent to the application server to the moment that the response is received
·
Start of servlet call to end of servlet call
At the application server level:
1.
From the moment that a request is accepted to the
moment that a response is sent back
·
Start of processing in the servlet to end of
processing in the servlet
2.
From the moment that a request is sent to the database
·
Start of JDBC call to end of JDBC call
At the database level
1.
From the moment that a request is accepted to the
moment that a response is sent back
·
Start of the block/end of the block
The described process with corresponding analytical models allows
both developers and architects to communicate more precisely and articulate
problems in a way that is understandable to all. Another advantage is that there
is a common measuring point. Since all actions are within the scope of the same
request, it is possible to make comparisons. Switching from code-driven tuning
(initiated by some programming event) to user-driven tuning (initiated by a user
request), provides a significantly better understanding of end-user needs. Since
IT systems are built to make the life of end users better, the users’ feelings
about the system can make or break a project.
The next section describes a number of real cases where the system
tuning process described here was used.
Case studies
The system tuning methodology described above is already working
in a number of projects at Dulcian, Inc. Two examples representing both the classical
client-server and the more contemporary 3-tier architectures will be described.
Multi-
For this project, the “famous” problem of inheriting a project
from another team was encountered. As always , the architecture had already been
defined, and there was a huge amount of existing code that was “supposed to
work.” As the project got closer to completion the following issues arose:
·
Parts of the code were written by different
teams.
·
There were three different communication
channels plus a number of internal pseudo-languages being used.
·
There were no defined end-user goals.
·
There were no defined performance measurements.
Because of time pressure, our team decided to tackle one problem
at a time. But very soon we were losing complete control of the system. At that
point, the system tuning approach was implemented, which ended up saving both
time and the system itself.
As a starting point, we needed to identify the most critical end
user requests. It is very important for development teams to understand the prioritization
of system modules and performance boundaries. Otherwise it is impossible to say
what is adequate and what is not. In this case, we had a set of tasks performed
by a single operator a few times each week (OrgTree maintenance). Originally, this
appeared to be low priority issue, but later we figured out that a set of
changes could be quite extensive and could have some side effects in the
running system. Finally, we had to not only modify the architecture, but spend a
significant amount of time on tuning.
The next logical step was to identify the full path from initialization
to completion (start/end points of each arc and points of “token transfer”) for
each request, including all required resources for each arc/roundtrip. The
process of laying out the path can
itself be helpful in identifying problems. When we described the whole process
of creating a new customer from start to
finish, we found that the last step (on the database) required too many
exclusive row locks in the generic table where the length of a single row was less
than one block. But since Oracle locks are implemented by blocks, we were
locking more than was needed. That discovery led us to completely rethink the database
locking points in the system.
Once all of the request paths have been identified, it is
possible to start defining standardized practices, since you have enough
information to combine requests by common properties. This step ensures that
you don’t have multiple implementations of the same task. In our project, a
whole set of problems was caused by the fact that Java programmers do not know
SQL and don’t use bind variables. As a result, there were a number of very
similar SELECT statements with hard-coded parameters. Replacing these queries with
a more generic mechanism decreased wait-times on initial loads from 25 seconds
to 7. After some fine tuning, that number was reduced again to 3 seconds.
The last part of the process is to validate the scalability of
the system. For each request type, we defined an average and maximum number of
requests per period of time and re-evaluated the required resource consumption
of each step in the path. A problem area was detected because of the nature of
Dulcian’s State-Transition Engine (
The system is now fully operational worldwide, new modules are
released regularly, and the whole development cycle is supported by a team
about one-third the size of the initial one (which was inherited from the
client side of the project).
Client-server OLTP system with a small number of users but
highly complex code
Another system currently in production started as a pilot project
in Oracle Forms 9i to test the application repository before moving the whole
solution to a JavaServer Page-based system. From the very beginning, nobody
cared about real production usage, scalability, or extensions. At some point the
client started to wonder whether or not it was necessary to migrate to JSPs if
the testing application runs well enough. Now the problem of production
evaluation became the most critical success factor.
Life became even more complicated because, although physically
the project was a client-server application, internally it could be described
in terms of 3-tier logic: client application/application repository/production
data. Since the system end users would actually only interact with a small
number of modules using a very limited set of commands, the process of identifying
requests, arcs and standard practices appeared simple. However, the whole
application repository was a big black box. There were too many requests and a
very complicated structure. As a result of system tuning analysis, we proved
that validating the existing repository against the required workload would
result in a successful production system without the rewrite.
From the same test results, it was possible to identify all of
the required resources and potential bottlenecks. This left the question of scalability.
We were able to start extending the system in all possible dimensions with no
problems. But when the amount of repository rules reached a high level, we
started to see significant degradation in performance. Since were still in
testing mode, we were able to identify the
large number of rules as a possible danger. However, a significant amount of
work was required to make the rules reusable.
In this case, even though system tuning methodology did not help with
the original development cycle, it provided a valuable resource for decision
making in later project stages, because we had an articulated a way of describing
problems and identifying potential areas of difficulty.
Summary
System tuning is a product-independent methodology applicable to
most projects. Its top-to-bottom approach increases the chances of making
correct system-wide architectural decisions. The unified vocabulary makes the
discussion of these decisions between the different teams involved in a project
significantly easier. In addition, using a system tuning mechanism makes it
easier to detect possible dangers in the early stages of the project.
That said, having a system tuning methodology is not a “silver
bullet,” but the difference between no methodology at all and something
complete enough to provide meaningful results is significant and leads to more successful,
working systems.
About the Author
Michael Rosenblum is a development DBA at Dulcian, Inc. He is
responsible for system tuning and application architecture. He supports Dulcian
developers by writing complex PL/SQL routines and researching new features. Mr.
Rosenblum is the co-author of PL/SQL for Dummies (Wiley Press, 2006). Michael
is a frequent presenter at various regional and national Oracle user group
conferences. In his native
