Repository-Based
Introduction
Ensuring that data is valid is one of the core requirements of
most information systems. Many data validation requirements are easily supported
by the database or application through simple properties. Properties such as
data type or length are so simple that it is tempting to say that these rules
should not even be independently handled, but simply a part of the data
structure. However, this is often not the case. For example, in the situation
where customer information is periodically accepted from an external data
source, the raw data should be entered into a table for manipulation and
validation, even if it violates rules. The mechanism handled by SQL Loader which
takes the rejected records and writes them to a separate file is neither
convenient nor user-friendly. It is much easier to allow the data file to enter
into the system with no validation rules whatsoever and then apply the
validation rules to the records now comfortably stored in the database. At that
point, it is possible to identify which business rules have been violated by
the entire logical record.
Many business rules, especially complex rules involving multiple
records, cannot be practically enforced by the database. Even if it is possible
to enforce these rules in the database, it is often not desirable to do so. It
is frequently better to allow the invalid data to be entered into the system so
that it can be corrected and made valid at a later time. There is another
reason for handling validation rules independently. The validation of
information often does not take place until a particular point in a logical
object’s process flow. For example, a merchandise order needs to be valid before
it is processed. Sometimes particular validation rules are contingent and may
only apply to an object under specific circumstances. Numbers on a budget may
be considered valid if revenues “are close to expenses” whereas in an
accounting system, for each journal entry, debits must equal credits to the
penny.
Validation rules are often very complex and span multiple
database tables as demonstrated in the following examples:
·
Ensuring that the dates where a person resided
in a specific place are later than that person’s date of birth involves comparing
information that resides in multiple tables.
These are just a few examples demonstrating that validation
business rules are not simply properties in the database and cannot be easily
handled through database triggers.
What is the appropriate solution for handling validation?
Traditionally, validation rules are embedded in code scattered
throughout data entry applications, creating a maintenance nightmare where even
finding a specific rule can be difficult, let alone changing it. “What are all
of the validation business rules being enforced?” is an almost impossible
question to answer. One solution to this dilemma is to collect all of the
business rules into a single code structure. Traditional Oracle shops may
create a large PL/SQL package. Java shops might create a large collection of
classes to reside in the middle tier. Users of JDeveloper may use the
Application Development Framework Business Components (
Not only are there a large number of validation rules, but
these rules are constantly changing. Validation rules are more volatile than most
other kinds of system requirements. This is not only due to changes in the
business, but also due to the fact that users do not always recognize that the
specified rules have many exceptions. The conditions under which many of the
rules are enforced need to be continually refined.
Why haven’t existing systems collapsed under the weight of
The optimal solution is to develop some type of rule grammar
and/or repository to support all of the validation logic. This paper proposes a
solution involving both elements, namely, a simple grammar as well as a small
repository.
Case Study: The Problem – Description of Project
The project that inspired the solution described in this paper
was a recruiting system designed and built for the U.S Air Force Reserve. During
the recruiting process, there is a great deal of information gathered about
individuals being admitted into the Reserve. In addition to the standard information,
for security reasons, an individual’s education, employment, residence and
medical histories are all gathered. Security clearances are handled by a
different agency. Therefore, all of the information collected must be bundled
into an XML file and sent off for processing by a separate organization. There
are hundreds of logical rules associated with the data in this XML file. Some
of these rules are very complex. For example, there cannot be any gaps in an
individual’s employment history. The document describing all of the rules is
summarized in a 22-page Excel spreadsheet, where each row is a separate rule. The
narrative description of the rules is contained in a 250-page monograph.
From looking at these rules and performing initial testing, it
was clear that the task of validating the XML file would have required
thousands of lines of code. In addition, the intention was to reuse the
solution for other military service branches, some of which might be interested
in a Java-based solution or some other programming language. Therefore, having
to create massive amounts of code that might have to be re-written in another
language was not a viable option.
For these reasons, the decision was made to use a
repository-based approach.
Case Study: The Solution – Validation Rules to Support
Security Clearance Validation
Initially, a one-table repository to handle the validation rules
was envisioned. For rules involving multiple tables, views would be created
joining those tables, and rules would be written against these views. For example,
in the Contract table, the “Start Date must be less than End Date” rule was
written as follows:
:StartDate
< :EndDate
For a rule stating: “Every department must have at least one
employee,” a view would be created for the Department table that would include
the number of employees in that department. The rule would look like this:
:NumberofEmployees > 0
This architecture would have worked, but would have meant
building and maintaining a large number of views with a lot of hand-coded
PL/SQL to generate the calculated columns. Therefore this approach was
abandoned fairly early on in the project. The architecture was too limited. Managing
the rules in this environment would not have been significantly easier than
writing them all in code. Further, if forced to move into a Java/XML
environment, potentially not even using a database, the entire concept of using
views would fall apart.
It was therefore decided to extend the validation rule grammar to
support, not only references to columns in the table, but also take advantage
of the parent-child relationships between the tables in order to unambiguously
reference data values in a different table when running a validation rule.
The syntax used to accomplish this is as follows:
:_Child to refer to child table (the “many” table in a
1-many relationship)
:_Parent
to refer to parent table (the “1” table in a 1-many relationship)
In order to say that the employee hire date must be greater than
the create date for the parent department, the rule would be associated with
the Employee table and be written as:
:_Parent.Department.CreateDate
< :StartDate
For referencing the child table, there are usually many child
records, so some type of aggregator method is called. To indicate that each department must have at
least one employee, the rule would be associated with
the Department table and be written as:
:_Child.Employee.Employee_OID.Count
> 0
The grammar was designed to support all standard aggregation
functions (Sum, Count, Min, Max, etc.).
It was also necessary for this project to filter the child rows,
so a WHERE clause was added to the method call.
For example, to enforce the rule that the department must have at least
one active (isActive = ‘Y’) employee, the rule would
be associated with the Department table and be written as:
:_Child.Employee.Employee_OID.Count(where
= :_Child.Employee.isActive = ‘Y’) > 0
If there were more than one relationship between the two tables,
there had to be some way to identify which relationship was the correct one to use
for the join. In this case, the foreign
key column was specified in the code. In
the above example, if the foreign key column in the Employee table were DepartmentEmployer_OID, then the rule would be associated
with the Department table and be written as:
:_Child.Employee(DepartmentEmployer_OID).Employee_OID.Count(
where = :_Child.Employee.isActive
= ‘Y’) > 0
It is apparent that these rules can eventually become quite
complex to read so it is just as easy to write “real” code. There was one rule that was so complex that hand-coding
was used, even though the grammar could support the description. However, out
of the 22 pages of rules, there were only a few rules that required any hand
coding. Even the “Debits must equal Credits”
rule for a journal entry is not too difficult to enforce. This rule would be associated with the JournalEntry table and written as:
:_Child.JEDetail.Amount.SUM(where
= :_Child.JEDetail.DrCrType = ‘Dr’) =
:_Child.JEDetail.Amount.SUM(where
= :_Child.JEDetail.DrCrType = ‘Cr’)
Contingent Rule Execution
The next problem encountered was that the rules were only
contingently being executed. For
example, if the “Debits must equal credits”
rule is only for “Financial” transactions that are “ReadyToBeProcessed,” then this rule would be associated with the JournalEntry table and be written as:
(:_Child.JEDetail.Amount.SUM(where = :_Child.JEDetail.DrCrType
= ‘Dr’) =
:_Child.JEDetail.Amount.SUM(where
= :_Child.JEDetail.DrCrType = ‘Cr’) )
and :JEType =
‘Financial’
and :Status = ‘ReadyToBeProcessed’
Now the rule is starting to look a lot more complex. In this
system, there might be many similar rules for “Financial - Ready to be
processed” journal entries. It was decided to move the conditional part of the
rule to its own property. Then the rule would be associated with the JournalEntry table and be written as:
Condition: :JEType = ‘Financial’
and :Status = ‘ReadyToBeProcessed’
Rule: (:_Child.JEDetail.Amount.SUM(where = :_Child.JEDetail.DrCrType
= ‘Dr’) =
:_Child.JEDetail.Amount.SUM(where = :_Child.JEDetail.DrCrType
= ‘Cr’) )
This was also the point where the decision was made to use a
multi-table repository. Since object
reuse was the driving force in the repository design, every element was created
to be reusable.
Description of the Rules Repository

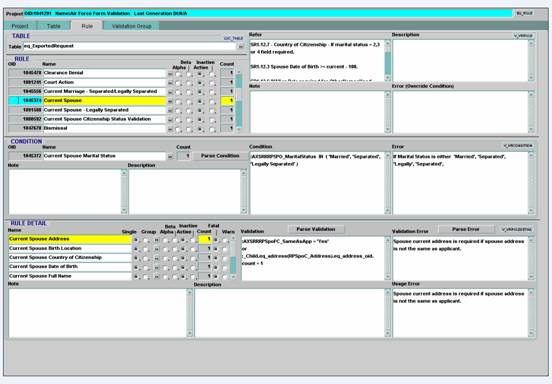

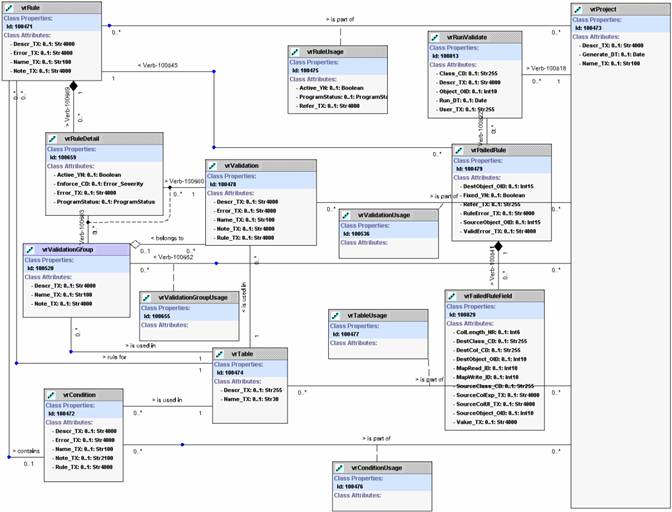

The rules repository was implemented in an Oracle database. A Rule is grouped by Project. A Rule can
belong to any number of Projects through the RuleUsage
table. This was done so that the same
rules could be used in various contexts.
For example, there is one set of rules that validates whether or not a
customer can be sent for a security clearance, but only a subset of those rules
are relevant if the customer is being processed without a security clearance. Note
that there is an active indicator in RuleUsage. This
is so that a rule could be declared as active for debugging purposes.
A rule is optionally attached to a Condition. A Condition is a Boolean expression
indicating whether or not the rule should be invoked. In practice, about half
of all rules have conditions attached to them.
A Validation is the basic rule that is enforced (e.g. :StartDate < :EndDate). It has a
many-many attachment to the Rule table through RuleDetail.
A Validation can also be grouped using a ValidationGroup
and then attached as a group to a rule.
Note that a Rule, Validation, and Condition are all attached to a
specific table. Theoretically, these objects could be reused across tables if
the column names were exactly the same. However, this idea seemed to
unnecessarily complicate the model.
Error messages are built from the Condition and the Validation error_tx. The user enters a user-friendly error message for
the Condition and the Validation. The system then uses that text to build the
error text if the rule fails. For
example, assume a rule on the Department table with the following repository
values:
Condition
Rule_tx = :Active_YN = ‘N’
Error_tx = ‘the department is inactive’
Validation
Rule_TX = :endDate is not null
Error_tx = ‘there must be a valid end
date’
If the rule fails, the generated error message would be: “If the
department is inactive then there must be a valid end date.”
Since the system is created with reusable components, the error
messages can be overridden for a specific usage. The Condition error_tx
override is stored in the Rule class, and the Validation error_tx
override is stored in the RuleDetail class.
A UML diagram of the rules repository is shown in Figure 1.
Figure 1: Rule repository data model
User-Friendly Rules
“For each Department where
the department is inactive (active indicator = ‘N’), there must be a valid end
date (end date is not null).”
Note that the names of the
columns in the generated rule include the user-friendly names from the
repository rather than the actual column names.
The Validation Repository Manager
The level of object reuse in the system made it difficult to
create a user interface for entering and maintaining rules. It is helpful to
think of a simple master-detail relationship between the Rule table and
individual validations. However, rules are reusable across different logical
applications and individual validations are reusable across individual rules.
The result was an application built with a simple master-detail relationship
between rules and validations from a user perspective. The complexity of the
many-to-many relationship is hidden from the person entering the rules. When a
user specifies a new validation in a rule, a selection can be made from an
existing validation, or a new one can be entered. When viewing validations or
rules, users can see how many times each of these objects is used elsewhere in
the system. This prevents those entering the rules from modifying an existing
rule or individual validation and causing inadvertent side effects elsewhere in
the system.
It was also challenging to communicate clearly to users what
actual error message would be generated for a particular rule. The error
message could be specified at the object or object usage level, both for
conditions and individual validations. A button was added to the user interface
to generate a sample error message that users could read to validate the
appropriateness of the message in each context.
Screen real estate in such a complex system was also a problem.
In addition to rules, error messages and descriptions in large text boxes,
there was an English language translation of the rule displayed. This problem
was solved by using a combination of on demand popup windows and scrolling text
fields.
It became important to find and navigate to particular
validations and rules. A separate Rule Finder was built where users could enter
search criteria. Rules satisfying the entered criteria would appear in a list.
Double clicking the rule navigated to the selected rule in the system.
Rule Enforcement
Once the rules have been specified, they must be enforced. For
validation, this means that when objects fail a validation rule, some error
message is generated. Up to this point, rule enforcement has not even been
mentioned, nor has any specific environment been specified. This is the core
idea of the business rules approach. The representation of the business rules
is independent of the enforcement of the rules. It is possible to determine the
appropriate logical grammar to describe the rules and in what context they will
be enforced without making any assumptions about the physical representation of
the data or the way in which the rules will be enforced.
In using the rules approach to building systems, approximately
30% of the time is spent designing the repository and developing the rule
grammar. Another 10% of the time is spent creating the appropriate user
interface to work with the repository. Writing the code generator/enforcement
mechanism requires approximately 10% of the project time. Entering the rules
into the repository consumes the remaining 50% of the time. This breakdown
indicates that even drastic changes to the way in which rules are enforced will
only require a relatively small amount of effort (a few days to a few weeks of
effort).
There are various alternatives, each of which is achievable and
surprisingly simple to implement:
1.
Interpreted mode: Leave the rules in the repository and
generate the code using an EXECUTE IMMEDIATE mechanism. This is the simplest
alternative and is frequently used for a proof-of-concept. The downside is
performance. Every rule that is enforced requires an EXECUTE IMMEDIATE
operation. If there are only a few rules, this mechanism works well; however,
if the number of rules is in the hundreds or thousands, severe performance
degradation will be experienced.
2.
Generate PL/SQL into the database (Compiled mode):
Using this alternative assumes that the data exists in Oracle tables and
straightforward PL/SQL will be generated to execute the validation logic. The
downside to this approach is that changes to the rules require regenerating the
code. If everything is generated into a single package, this can require up to
30 seconds each time the code is regenerated. A 30-second recompile time might
not seem long, but in a debugging cycle with numerous iterations of rule
tweaking, waiting 30 seconds for each recompile is not desirable. The main
benefit of this approach is its speed at runtime. By contrast, using the
interpreted mode instead might require 30-40 seconds at runtime.
3.
Generate Java to run against XML: In order to perform
validation away from the Oracle database (for example, to run on an isolated
laptop for later upload to the database), it is necessary to validate without
access to Oracle. This can be done by generating Java code to perform the same
validations against an XML file. PL/SQL code generators have been successfully
migrated to an XML data source using the Sunopsis
utility that allows the use of SQL to access an XML data source.
For the project described in this paper, the Compiled mode
approach was used for version one. For the next version, the third approach
will be used.
In addition to simple error messages, it was also important for
the Validator to provide information allowing users
to identify the reason(s) for the validation failure. The following information
was provided to users:
·
Object being validated when the rule failed
·
Value of each field referenced in the rule
·
Place in the user interface where the
information could be corrected
The ultimate goal was to allow users to double click any field
referenced in the error message and navigate to the appropriate portion of the
application user interface.
A screen shot of the repository manager is shown in Figure 2:
Figure 2: Repository Manager User Interface
Lessons Learned: The Benefits of Repository-Based Development
This project was a great success for the repository-based
development approach. The time spent building the architecture and generators
was more than offset by the speed at which hundreds of rules could be
supported. The validation engine built makes further rule specification
extremely rapid.
As more and more business rules are moved into repositories and
out of code, the benefits of repository-based coding have become more and more
apparent. It is easier to make objects reusable and they are far easier to
manage in a repository than as code objects.
It is also easer to make changes to the repository and perform an impact
analysis of potential changes.
At some level, it feels like a “better” way to do
programming. With very little
development time required to create a repository manager, a more efficient IDE
for application development is created than can be built using tools with
millions of dollars of development effort such as TOAD for PL/SQL, JDeveloper
or Eclipse for Java. One can only wonder what could be achieved in repository-based
development if it attracted the attention of one of the major software development
vendors.
About the Author
Dr.
