1	J2EE Co-existing with .NET and SQL Server
2	The Problem .NET & J2EE environments exist within the same organization Oracle & SQL Server databases exist within the same organization. How do we deal with this situation?
3	J2EE Rich environment Basis of Oracle’s Project Fusion Complex Hard to learn Evolving Expensive talent
4	.NET Microsoft environment Less rich (not Model-View-Controller) Easier to learn Environment of choice in many organizations Cheaper talent Can’t be ignored
5	SQL Server Microsoft DBMS Catching up with Oracle OK for most applications Can’t be ignored
6	Can these systems work together? Can a JDeveloper ADF/J2EE application running on Oracle be easily made to work with SQL Server? Can a J2EE application work with .NET? Can you port an Oracle application to SQL Server? If you have both J2EE and .NET applications running against the same database (either Oracle or SQL Server), can you make those applications talk to each other? Not as easy as you would hope.
7	Case Study The problem: Insert data into the database 1. Users fill out on screen forms (IBM/PureEdge). 2. The data is extracted to an XML file. 3. The database is updated. Retrieve data from the database 1. Data is extracted from the database. 2. The XML file is populated. 3. The file is passed to the client. 4. The on-screen form is populated.
8	Existing Architecture (2 versions) Oracle DBMS Rules-based architecture Oracle repository Forms Repository Manager PL/SQL code generator Written in PL/SQL Generates PL/SQL Thick-client web application Blank forms are on client. XML Data storage Rules-based architecture Same rules repository Generates Java code Same user interface
9	Proposed Architecture SQL Server database SQL Server-based rules repository Same structure Web-based (JSP/Struts) Repository Manager Java generator Thin-client architecture (.NET) Leave XML generation in J2EE environment Project had to be completed in 6 weeks.

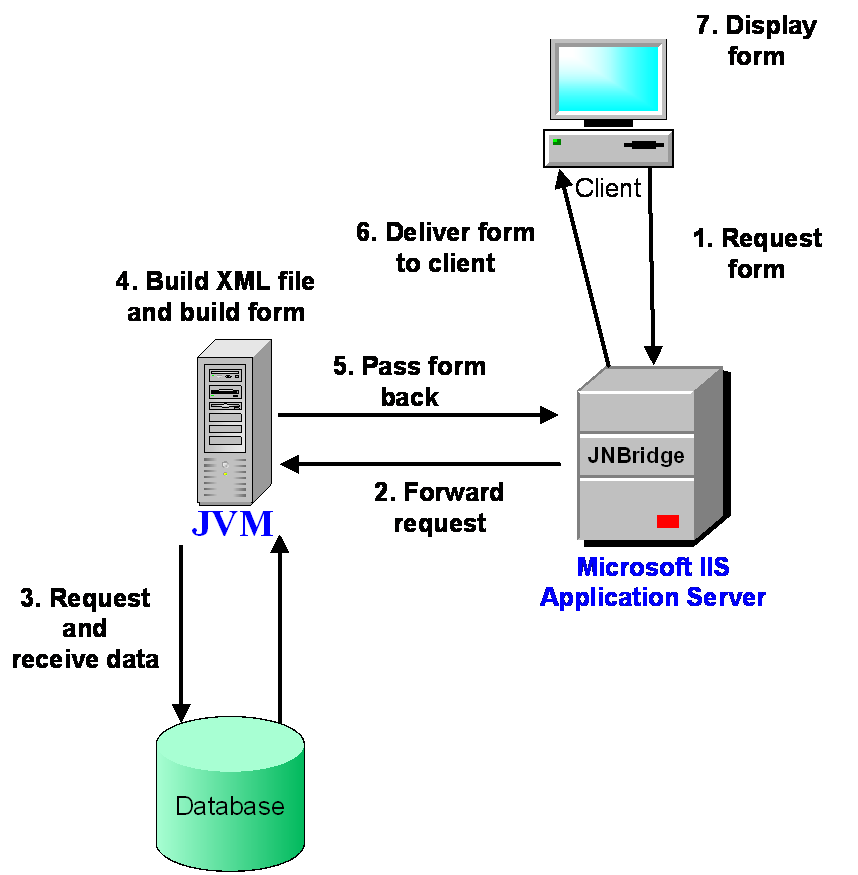

10	Overall process
11	SQL Server Issues Problems to overcome: 1. The SQL Server development culture is not as sophisticated. 2. SQL Server does not include a CONNECT BY clause to support recursive structures. No industry standard workaround 3. SQL Server does not include sequences. No industry standard workaround Annoyances to deal with: SQL Server has an 8,000 character limit per record. No PL/SQL No casting collections to tables INSTEAD OF trigger views are new.
12	SQL Server Solutions Primary key sequences Use SQL Server identity columns (auto-populate numeric columns) Use identity columns like sequences CONNECT BY problem Use 7-level self-join 8,000 character limit Remove all VARCHAR2(4000) fields No PL/SQL Move all logic to the middle tier Avoid SQL Server scripting
13	Porting a J2EE Application to SQL Server Add JDBC to SQL Server driver (from Microsoft website). JDeveloper wizards don’t work. Pointed to an Oracle database To make everything work, refactor for primary keys.
14	Making J2EE talk to .NET Two different worlds .NET won’t run on OAS. Java won’t run on IIS. Place both application servers on the same machine Sounds wrong Won’t scale Make the two application servers communicate Use a web service? Slow, clumsy Use JNBridge? Worked well, scaled well
15	JNBridge Searched long and hard for J2EE/.NET integration path Books, articles Need to register classes to call in JNBridge JNBridge generated DLL Reference DLL in .NET code JNBridge has its own JVM or can call Java on a different machine.
16	Microsoft IIS Basic out of the box setup No extra setup required
17	Java on the client As forms were opened on the client... Extract data Call a web application Form product (IBM Workplace Forms - formerly PureEdge) only ran Java Needed JVM on client machines
18	Conclusions Making the two environments and databases work together can be done....BUT It takes a long time to work through the details SQL Server is annoying No sequences No CONNECT BY 8,000 character limit No casting of collections .NET and J2EE will not work well together Using a web service is OK but slow Use JNBridge for transaction-level work
